| 원래 장소: | 중국 |
| 브랜드 이름: | Dongdai |
| 인증: | 9001 |
| 모델 번호: | ZG2600 |
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | Negotiatable |
| 포장 세부 사항: | 수출 폴리우드 |
| 배달 시간: | 3-5 주 |
| 지불 조건: | T/T, Wechat Pay, Alipay |
| 공급 능력: | 년 당 1000 세트 |
| 재료: | 스테인레스 강 304/ 316L | 보증: | 12 개월 |
|---|---|---|---|
| 제품 이름: | 스테인리스 스틸 자동 기계식 막대 화면 | 애플리케이션: | 슬러지 처리 |
| 색상: | 고객 요구에 따라 | 애프터 판매 서비스 제공: | 온라인 지원 |
| 기능: | 정수장 | 서비스 수명: | 30 년 이상 |
| 크기: | 능력으로서 | 용량: | 고객의 요구를 충족시킵니다 |
| 채널의 깊이: | 1-10M | 그리드의 폭: | 1-5m |
| 전압: | 사용자 정의하십시오 | 모터: | 국내 또는 수입 브랜드 |
| 키워드: | 기계식 막대 화면 | 작업: | 오토매틱 |
| 드럼 dia: | 2600mm |

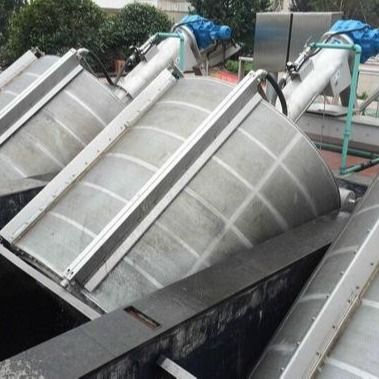

ZG-Series Rotary Drum Bar Screen | Stainless Steel/Nylon Options with Expert Online Support
Why Choose Longdai?
Decade-Long Expertise: Over 10 years of specialized experience in wastewater and sludge treatment solutions.
German Technology Integration: Enhanced performance and reliability through collaboration with German engineering partners.
Premium Material Selection: High-quality stainless steel or nylon components sourced from certified suppliers.
End-to-End Capability: In-house R&D and full manufacturing control ensure stringent quality standards.
Applications
The ZG-Series integrates fine screening, slag lifting, and compression dewatering into a single system. Ideal for municipal and industrial wastewater treatment plants, it effectively intercepts and processes solid waste in channels or containerized installations.
Technical Parameters
| Model | ZG1400 | ZG2200 | ZG2600 | ZG3000 |
|---|---|---|---|---|
| Gap=6mm | 419 | — | — | — |
| Gap=10mm | 482 | 1315 | 2150 | 2750 |
| Drum Ø (mm) | 1400 | 2200 | 2600 | 3000 |
| Channel W (mm) | 1440 | 2440 | 2640 | 3040 |
Additional Dimensions
Length (L): 3–9 m
Width (A): 2.6–9 m
Motor Power: 1.1–3 kW
Working Principle
Screening: Wastewater enters a drum-shaped screen basket; solids are trapped on the bar surface.
Cleaning: A rotary toothed rake activates when water level differential triggers cleaning cycles.
Discharge: Debris is lifted to the top, scraped into a slag slot, and conveyed to a compression unit for dewatering.
Compression: A screw press reduces debris volume before disposal.
Key Features
35° Angled Bar Design: Creates a baffle effect to capture fine particles smaller than bar gaps.
Self-Cleaning System: Integrated flushing and anti-clogging mechanisms minimize manual intervention.
Optimized Hydraulics: Cylindrical structure increases flow velocity and reduces head loss.
Corrosion-Resistant Materials: Pickling-passivated stainless steel or nylon components for longevity.
Space-Saving Integration: Combines screening, conveying, and compression in one unit.
Low Maintenance: Lubrication-free rotating points and minimal drive unit servicing.
Outline and Installation Chart
Technical Requirements
1. The channel width and channel depth should be flat, and the dimensional tolerance should be≤ 10mm.
2. The equipment is fixed with expansion bolts on site.
