| 원래 장소: | 중국 |
| 브랜드 이름: | Dongdai |
| 인증: | 9001 |
| 모델 번호: | GS1000 |
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | Negotiatable |
| 포장 세부 사항: | 수출 폴리우드 |
| 배달 시간: | 3-5 주 |
| 지불 조건: | T/T, Wechat Pay, Alipay |
| 공급 능력: | 년 당 1000 세트 |
| 재료: | 탄소강 또는 스테인레스 스틸 | 보증: | 1 년 |
|---|---|---|---|
| 제품 이름: | 바 스크린 | 애플리케이션: | 폐수 처리 |
| 힘: | 0.37-1.5kw | 색상: | 사용자 정의 |
| 애프터 판매 서비스 제공: | 온라인 지원 | 무게: | 200----2000kg |
| 기능: | 현탁물질을 필터링하기 | 서비스 수명: | > 10 년 |
| 크기: | 능력으로서 | 용량: | 10-5000 M3/일 |
| 채널의 깊이: | 1-10M | 그리드의 폭: | 1-5m |
| 전압: | 사용자 정의하십시오 | 모터: | 독일어 |
| 키워드: | 자동 바 스크린 | 작업: | 오토매틱 |
| 갈퀴 재료: | 스테인레스 스틸 또는 나일론 |

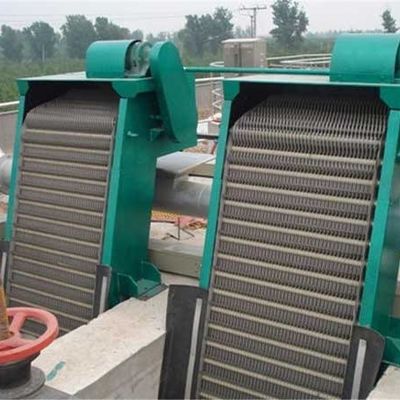

Compact Municipal Mechanical Bar Screen with Streamlined Raking System
Notice:
All equipment can be fully customized to meet your specific requirements. Please share your technical parameters, flow charts, or other demands. We guarantee a quick response within 12 hours via email or online chat.
Technical Parameters
| Parameter | Type / Value |
|---|---|
| Model | ABC |
| Equipment Width (mm) | 2500 |
| Channel Width (mm) | 2600 |
| Bar Width (mm) | 2360 |
| Bar Spacing (mm) | 40–150 |
| Installation Angle (°) | 70–80 |
| Speed (m/min) | ≈3 |
| Motor Power (kW) | 1.1–2.2 |
Why Choose Longdai?
Decades of Expertise: Over 10 years of specialized experience in wastewater and sludge treatment technologies.
German-Engineered Excellence: Core technologies integrated from German partners, ensuring superior performance compared to conventional Chinese manufacturers.
Premium Components: Only high-quality parts from certified global suppliers are used.
End-to-End Capability: In-house R&D center and full-cycle manufacturing system for strict quality control.
Applications
This system is ideal for residential and urban sewage pretreatment. Its modular design adapts to varying channel widths and flow rates. Key components include a base frame, patented plough-shaped tines, rake plates, elevator chains, and motor-reducer units. The rake plates, mounted on chains, perform continuous clockwise movement to capture and elevate debris from the bottom to the discharge point.
Working Principle
The bar screen operates via a downward-backtracking rotary chain mechanism. As sewage flows through, the fixed bars intercept large debris. The toothed rake plates penetrate the bar gaps and transport trapped solids upward via chain rotation. At the top, debris is discharged by gravity or guided into a conveyor system. A secondary grid prevents hydraulic short-circuiting during rake reversal.
Key Features
Quiet & Robust Drive: Cycloidal pinwheel/helical gear reduction motor ensures low-noise, stable operation.
High-Efficiency Raking: Oblique-tip rake teeth welded to horizontal shafts for optimal debris capture.
Rigid Frame Construction: One-piece frame design simplifies installation and reduces maintenance.
Flexible Control: Local and remote operation support for seamless integration.
Dual Overload Protection: Mechanical shear pins + overcurrent protection for operational safety.
Anti-Short Circuit Design: Secondary grid eliminates debris bypass during rake cycling.
Water Flow Chart
|
Parameters Type |
SL-2500 | SL-3000 | SL-3500 | SL-4000 | ||
| Origin Water Depth(m) | 3.0 | |||||
| Water Speed(m/s) | 1.0 | |||||
| Space(mm) | 40 | Water Flow(m³/s) | 5.66 | 6.87 | 8.06 | 8.26 |
| 50 | 5.88 | 7.11 | 8.4 | 9.6 | ||
| 60 | 6.0 | 7.35 | 8.65 | 9.93 | ||
| 70 | 6.24 | 7.5 | 8.80 | 10.14 | ||
| 80 | 6.3 | 7.62 | 8.97 | 10.29 | ||
| 90 | 6.36 | 7.71 | 9.06 | 10.41 | ||
| 100 | 6.45 | 7.8 | 9.15 | 10.53 | ||
| 110 | 6.48 | 7.86 | 9.24 | 10.62 | ||
| 120 | 6.54 | 7.92 | 9.3 | 10.68 | ||
| 130 | 6.57 | 7.98 | 9.36 | 10.74 | ||
| 140 | 6.6 | 8.01 | 9.39 | 10.8 | ||
| 150 | 6.63 | 8.04 | 9.45 | 10.86 | ||
Outline and Installation Chart
1.Motor Mount 2.Tooth Rake 3.Rack 4.Bottom Trash Rack 5.Guide Device 6.Driving Device 7.Slag Baffle 8.Bar Screen
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
