| 원래 장소: | 장부 중국 |
| 브랜드 이름: | longdai |
| 인증: | ISO9001 |
| 모델 번호: | LD-401 |
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | Negotiatable |
| 포장 세부 사항: | 수출 폴리우드 |
| 배달 시간: | 25 일 |
| 지불 조건: | l/c, t/t |
| 공급 능력: | 연도당 2600 세트 |
| 제품 이름: | 슬러지 탈수 스크류 프레스 머신 | 신청: | 폐수 처리장 |
|---|---|---|---|
| 유형: | 추진기프레스 | 용법: | 슬러지 처리 |
| 키워드: | 달팽이 탈수기 | 용량: | 250L~10000L |
| 재료: | 스테인레스 강 SUS 304 | 전압: | 220v 380V 50HZ 60HZ (또는 맞춤화됩니다 |
| 이름: | 스크루 필터 프레스 |
Automatic Integrated Volute Sludge Dewatering Machine for Farm Sludge Treatment
This system is specifically designed for efficient sludge dewatering, capable of reducing the moisture content of treated sludge to 75%–85%. The integrated stacked screw dehydrator incorporates a fully automatic control cabinet, flocculation conditioning tank, sludge thickening and dewatering unit, and filtrate collection tank. It achieves highly efficient flocculation under full automation and continuously completes sludge thickening and mechanical dewatering. The collected filtrate can be safely discharged or returned for further treatment.
Working Principle
During operation, sludge is fed into the filtration cylinder through the inlet and is conveyed forward by rotating spiral blades. As the pitch of the spiral shaft gradually decreases, mechanical pressure on the sludge increases, progressively squeezing out moisture. The separated water is discharged through gaps between the fixed and moving rings. Meanwhile, the self-cleaning function between these rings prevents clogging and ensures smooth operation. Finally, the dewatered sludge cake is expelled through the discharge outlet.
Parameters
| Specification and dimension Model | DL-101 | DL-102 | DL-201 | DL-202 | DL-301 | DL-302 | DL-303 | |
|
Handling capacity (m3／h) |
Ind concentration S．S．0.2～0.5％) |
0.6~1.5 | 1.2~3.0 | 1.8~4.5 | 3.6~9.0 | 6.0~15 | 12~30 | 18~45 |
|
Ind concentration (S．S．0.5～2.0％) |
0.25~0.6 | 0.5~1.2 | 0.75~1.8 | 1.5~3.6 | 2.5~6.0 | 5.0~12 | 7.5~18 | |
|
Ind concentration (S．S．2.0～5.0％) |
0.1~0.25 | 0.2~0.5 | 0.3~0.75 | 0.6~1.5 | 1.0~2.5 | 2.0~5.0 | 3.0~7.5 | |
|
Exdry amount (kg／h) |
Ind concentration (S．S．0.2～0.5％) |
0~3.0 | 2.4~6.0 | 3.6~9.0 | 7.2~18 | 12~30 | 24~60 | 36~90 |
|
Ind concentration (S．S．0.5～2.0％) |
0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 | |
|
Ind concentration (S．S．2.0～5.0％) |
0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 | |
| Water content of mud cake (％) | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | |
| Spirical Didiameter (mm)x Quantity (root) | 100x1 | 100x2 | 200x1 | 200x2 | 300x1 | 300x2 | 300x3 | |
| Power (KW) | 0.2 | 0.3 | 0.6 | 0.8 | 0.8 | 1.2 | 1.95 | |
|
contour size of the unit(s) (ww) |
L | 1816 | 1816 | 2500 | 2500 | 3255 | 3455 | 3605 |
| W | 756 | 910 | 850 | 935 | 985 | 1295 | 1690 | |
| H | 1040 | 1040 | 1270 | 1270 | 1600 | 1600 | 1600 | |
| Reference Weight(kg) | 190 | 275 | 360 | 470 | 820 | 1350 | 1820 | |

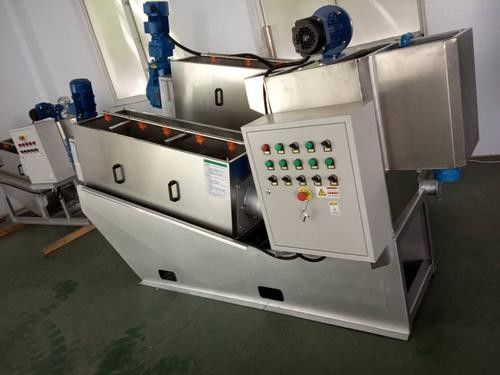

Real picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
