China Safe And Stable Press And Dewatering Machine Used For Water Treatment Simple Control Silver Color Steel Structure
Brief Introduction
The main products include mechanical bar screen, air flotation device, dosing device, mud scraper, cooling tower, decanter, chemical degreasing device, hydraulic screen, sand water separator, filter, conveyor, thickener , Biological filter, softened water, buried sewage treatment equipment, etc.
Application

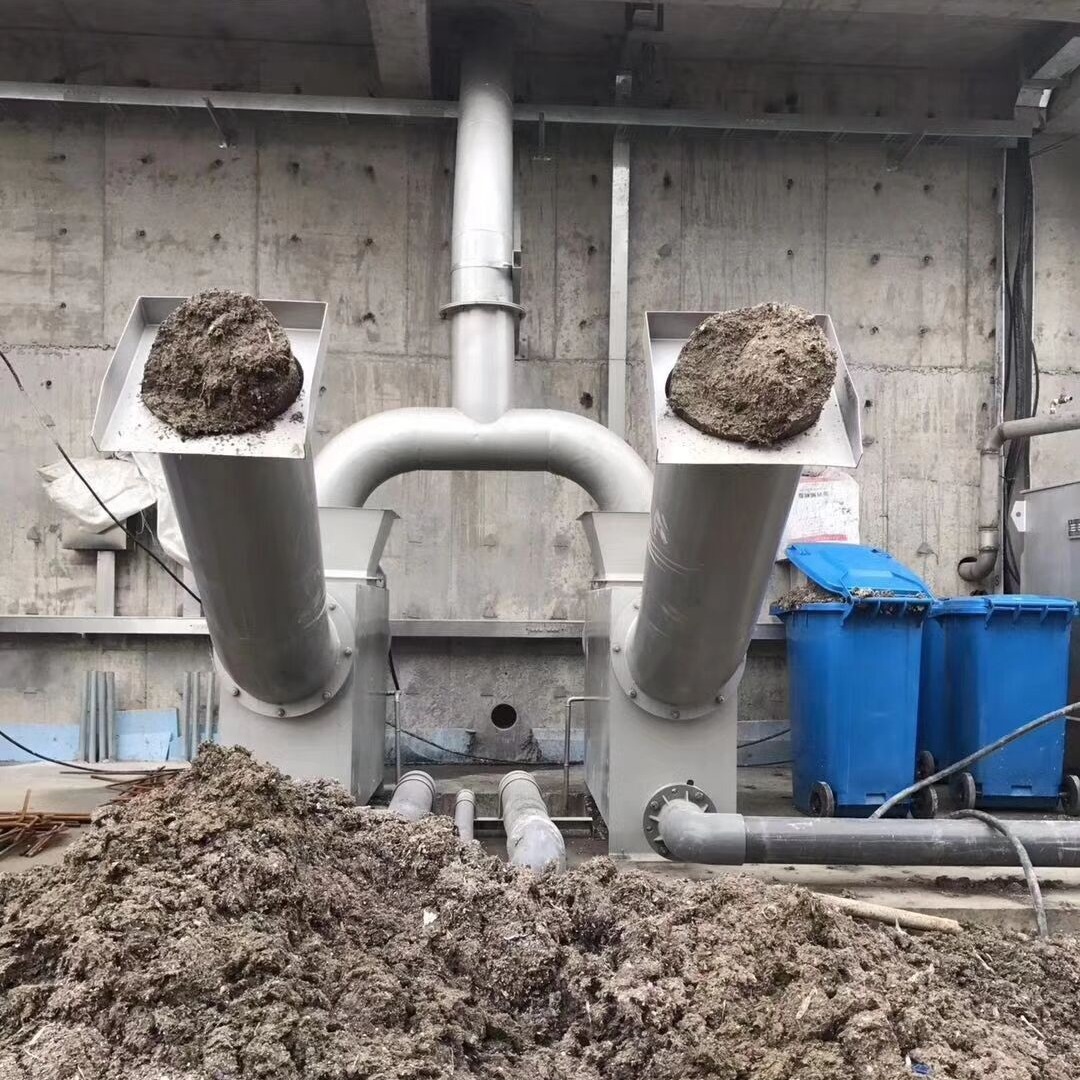

LYZ type screw press is suitable for the treatment of bar screen slag in urban sewage treatment plants, sewage pretreatment devices in residential quarters, municipal rain, sewage pumping stations and water plants, etc. It is mainly used in conjunction with conveyors or bar screens and other equipment to press and dewater the separated residue.
Parameters
| Model Number / Parameters | LYZ-200 | LYZ-250 | LYZ-300 | LYZ-350 | LYZ-400 | |
| Spiral nominal diameter D(mm) | 200 | 250 | 300 | 350 | 400 | |
| Feed and material handling quantity Q(m3／h) | 1.2 | 2.3 | 4.0 | 6.5 | 9.0 | |
| Revolution speed of screw n(r／min) | 7~8 | |||||
| Power of motor N(KW) | 1.1 | 1.5 | 2.2 | 3.0 | 4.0 | |
| Ineding water content(％) | 90~95 | |||||
| Water content of gate slag effluent(％) | ≤65 | |||||
| Installation size (mm) | B | 350 | 400 | 440 | 490 | 540 |
| B1 | B-80 | |||||
| B2 | Supporting with corresponding equipment | |||||
| L | Supporting with corresponding equipment | |||||
| L1 | L+480 | |||||
| L2 | L+1800 | |||||
| H | L≥1200 | |||||
| H1 | Supporting with corresponding equipment | |||||
Structure and Working Principle

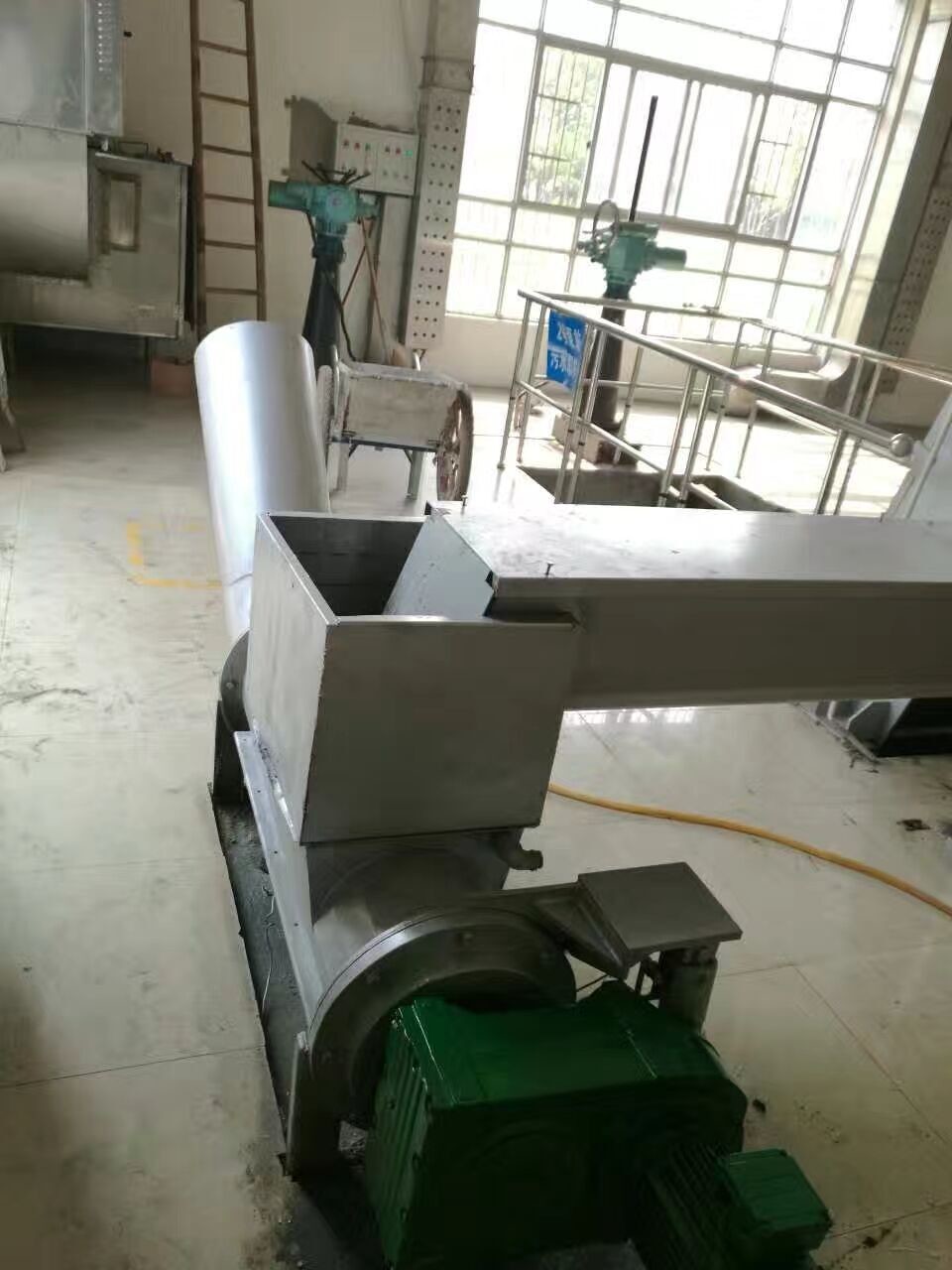

The equipment adopts a shaft screw type. When the material enters the hopper, the bar slag is pushed into the discharge pipe through the spiral body, and the bar slag is compressed by the gravity to push out the discharge port, and is directly discharged to the garbage trolley for transportation inside and outside. Waste water is discharged through the drain pipe after the filter screen and the water collection pipe.
Main Features
1. The drive device adopts a shaft-mounted gear reducer, which has a compact structure, stable and safe operation.
2. The spiral blade is welded on the screw shaft to enhance the rigidity and pressing capacity of the blade. The spiral blade adopts the variable pitch form.
3. The discharge pipe and the press are simplified as 45º inclination.
4. The press frame is fixed by expansion bolts, no embedded parts are needed.
Main Parameters and Installation Size Chart
Outline and Installation Chart
Packing and Delivery
The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
About Us
The main business involves petrochemical industry treatment equipment, municipal water affairs, urban sewage treatment equipment, industrial sewage treatment equipment, domestic sewage treatment equipment, pure water equipment, reverse osmosis equipment, water supply purification, waste gas pollution treatment areas.
FAQ:
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time? What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Unionpay
