Zinc Plated Screw Belt Conveyor Waster Water Treatment
To Our Customers:
We engage in manufacturing lots of wastewater treatment equipments. Any question, please feel free to contact us. Thanks.
Application
As a general-purpose equipment that can be continuously conveyed, belt conveyors are widely used in industrial production. They can transport bulk and loose granular materials, and can also be used to transport finished items such as bagged cement. It is a common conveying equipment. It has the advantages of high efficiency, long transportation distance, low power consumption, simple structure, stable and reliable work, convenient operation, and low noise pollution. It is usually used in mining, crushing, packaging, feeding, metering and stacking and reclaiming.
| Parameters | spiral Nominal diameter (mm) spiral dia (mm) |
Type | LS-200W | LS-250W | LS-300W | LS-350W | LS-400W |
| 200 | 250 | 300 | 350 | 400 | |||
| 185 | 235 | 285 | 320 | 385 | |||
| Capacity | installation angle | 0° | 1.5 | 3.6 | 6 | 8.4 | 11.7 |
| 5° | 1.35 | 3.24 | 5.4 | 7.56 | 10.53 | ||
| 15° | 1.05 | 2.52 | 4.2 | 5.88 | 8.19 | ||
| 25° | 0.9 | 2.16 | 3.6 | 5.04 | 7.02 | ||
| Spiral speed n(r/min) | 12 to 16 | ||||||
| Motor N(KW) | 0.75-5.5 (according to L and angle) | ||||||
| installation size(mm) | A | 0+40 | |||||
| B | 0 + 110 | ||||||
| Bi | Matching with corresponding equipment | ||||||
| L | According to user requirements | ||||||
| Li | Matching with corresponding equipment | ||||||
| l_2 | (L-1000)/2-(L-71000)/3 | ||||||
| L3 | 250 | 250 | 300 | 350 | 400 | ||
| H | Matching with corresponding equipment | ||||||
| Hi | 140 | 165 | 188 | 210 | 240 | ||
| H2 | H-150 | ||||||
| H3 | Matching with corresponding equipment | ||||||
Structure and Working Principle

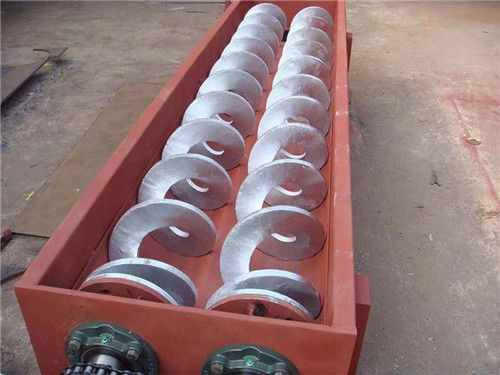

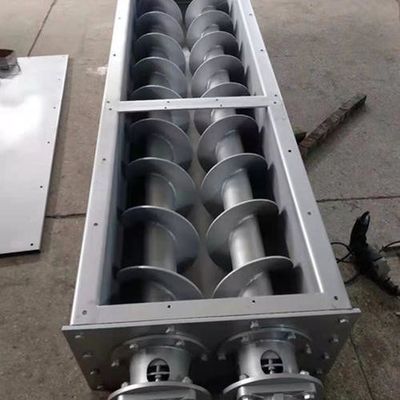

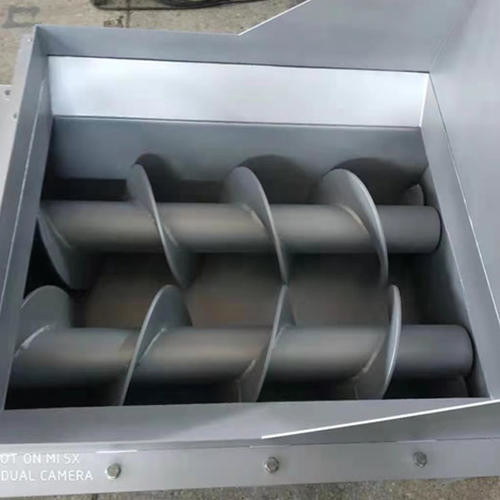

The equipment adopts a screw type. When the material enters the hopper of the conveyor, the material is pushed and slid by the rotation of the spiral blade, and sent to the discharge port along the U-shaped conveying groove, and is matched with the press or garbage trolley to carry the material for next processing. China Easy Operation LS-W Type Double Shaftless Screw Belt Conveyor Waster Water Treatment Color Optional Durable Screw
This type screw conveyor is suitable for Bar Screen slag treatment in urban sewage treatment plants, sewage pretreatment devices in residential communities, municipal rain/sewage pumping stations and water plants. It is mainly used in conjunction with grids or dehydrators and other equipment. Bar screen slag or dewatered sludge is transported.
Main Features
1. The drive device adopts a shaft-mounted parallel shaft helical gear reducer, which has a compact structure and a stable and safe operation.
2. The conveying direction is determined by the spiral direction of the spiral blade and the rotation direction of the motor, and it can realize bidirectional conveying.
3. The U-shaped groove is equipped with inner lining, which has strong wear resistance, long service life and easy replacement.
4. The conveyor frame is fixed by expansion bolts, no embedded parts are needed.
5. The equipment can be linked to the supporting equipment for convenient control, and it can also be equipped with an on-site control box by itself.
Main Parameters and Installation Size Chart
Outline and Installation Chart
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
About Us
The main business involves petrochemical industry treatment equipment, municipal water affairs, urban sewage treatment equipment, industrial sewage treatment equipment, domestic sewage treatment equipment, pure water equipment, reverse osmosis equipment, water supply purification, waste gas pollution treatment areas.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
